P類 機械螺絲
DIN6900 不鏽鋼十字圓頭螺絲
商品編號:21H310001
產品規格 商品討論

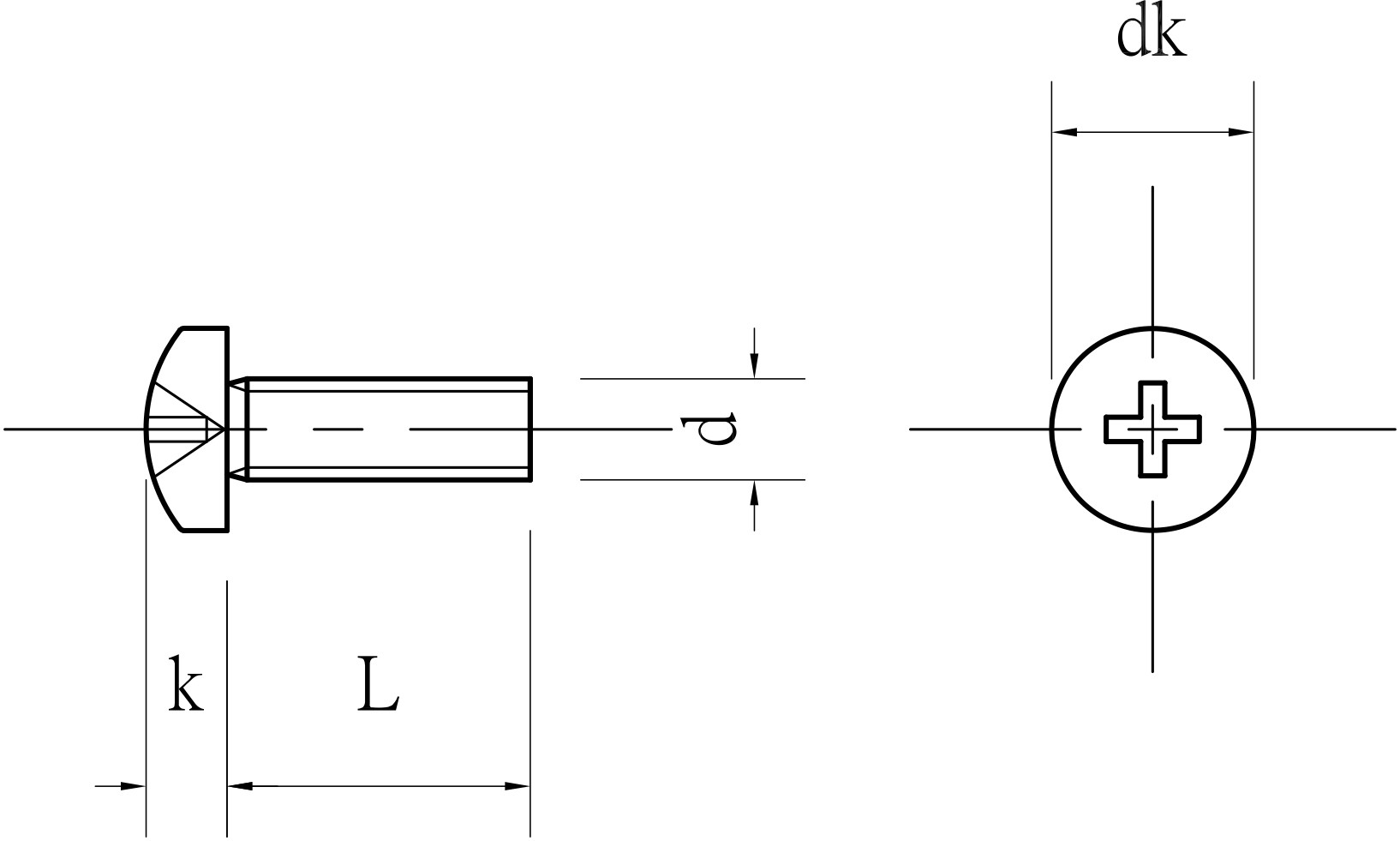

| Type | d | L | dk | k |
| DIN6900 | M1 | 3 4 5 | 1.8 | 0.6 |
| M1.2 | 3 4 5 6 | 2 | 0.7 | |
| M1.4 | 3 4 5 6 8 10 12 | 2.5 | 0.8 | |
| M1.6 | 3 4 5 6 8 10 12 16 | 2.7 | 0.9 | |
| M2 | 3 4 5 6 7 8 9 10 12 14 15 16 18 20 22 25 28 30 32 35 38 40 45 50 60 |
3.2 | 1.3 | |
| M2.5 | 3 4 5 6 7 8 9 10 12 14 16 18 20 22 25 28 30 32 35 38 40 45 50 60 |
4.2 | 1.6 | |
| M3 | 3 4 5 6 7 8 9 10 12 14 16 18 20 22 25 30 35 40 45 50 55 60 70 80 | 5.2 | 1.7 | |
| M4 | 4 5 6 8 10 12 14 16 18 20 22 25 30 35 40 45 50 55 60 65 70 80 90 100 | 6.6 | 2.2 | |
| M5 | 6 8 10 12 14 16 18 20 22 25 28 30 35 40 45 50 55 60 65 70 75 80 90 100 | 8.5 | 3.2 | |
| M6 | 6 8 10 12 14 16 18 20 22 25 28 35 40 45 50 55 60 65 70 75 80 90 100 | 10.1 | 3.4 | |
| M8 | 10 12 14 16 18 20 25 30 35 40 45 50 55 60 70 80 90 100 | 13 | 4.3 | |
| M10 | 16 20 25 30 35 40 | 19.6 | 6.8 |
